Fixings & Fastening Hardware
Every ATS Environmental installation is fixed to the host structure - not built into it. Getting the right fastener for the job matters as much as the product itself
Find your fixings
Tell us what you’re fixing to and what you’re installing – we’ll tell you the fastener and hardware you need.
Make your selections above to see your fixings.
Fasterners by Culvert/Structure Material
Screws and anchors are selected to suit the host structure, not the product being installed.
CONCRETE CULVERTS

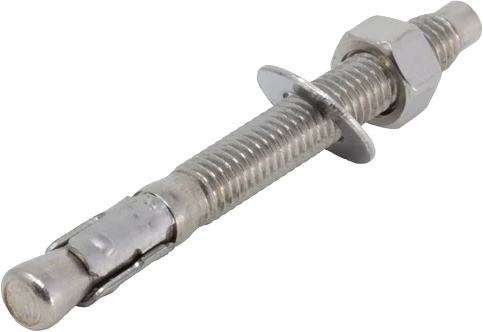

Wedge (masonry) Anchor
316 stainless, with washer and nut. Two lengths held in stock to suit embedment depth and load.
PLASTIC CULVERTS

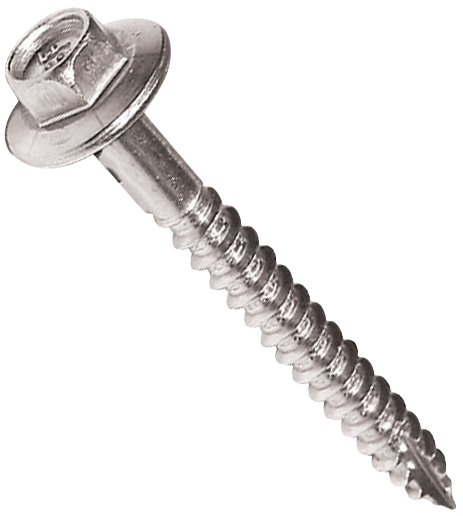

Woodtek Screw
Coarse-thread, self-drilling, hex flange washer head. 316 stainless.
STEEL / METAL CULVERTS

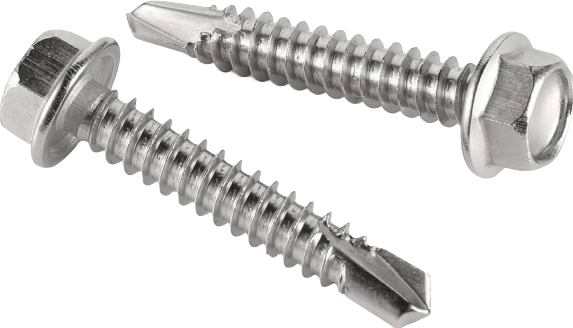

Self-Drilling TEK Screw
Hex head, drills and taps its own thread – no pre-drilling. Galv or 316 depending on structures material.
Hardware by Product
Screws and anchors are selected to suit the host structure, not the product being installed.
150MM FLEXIBAFFLE

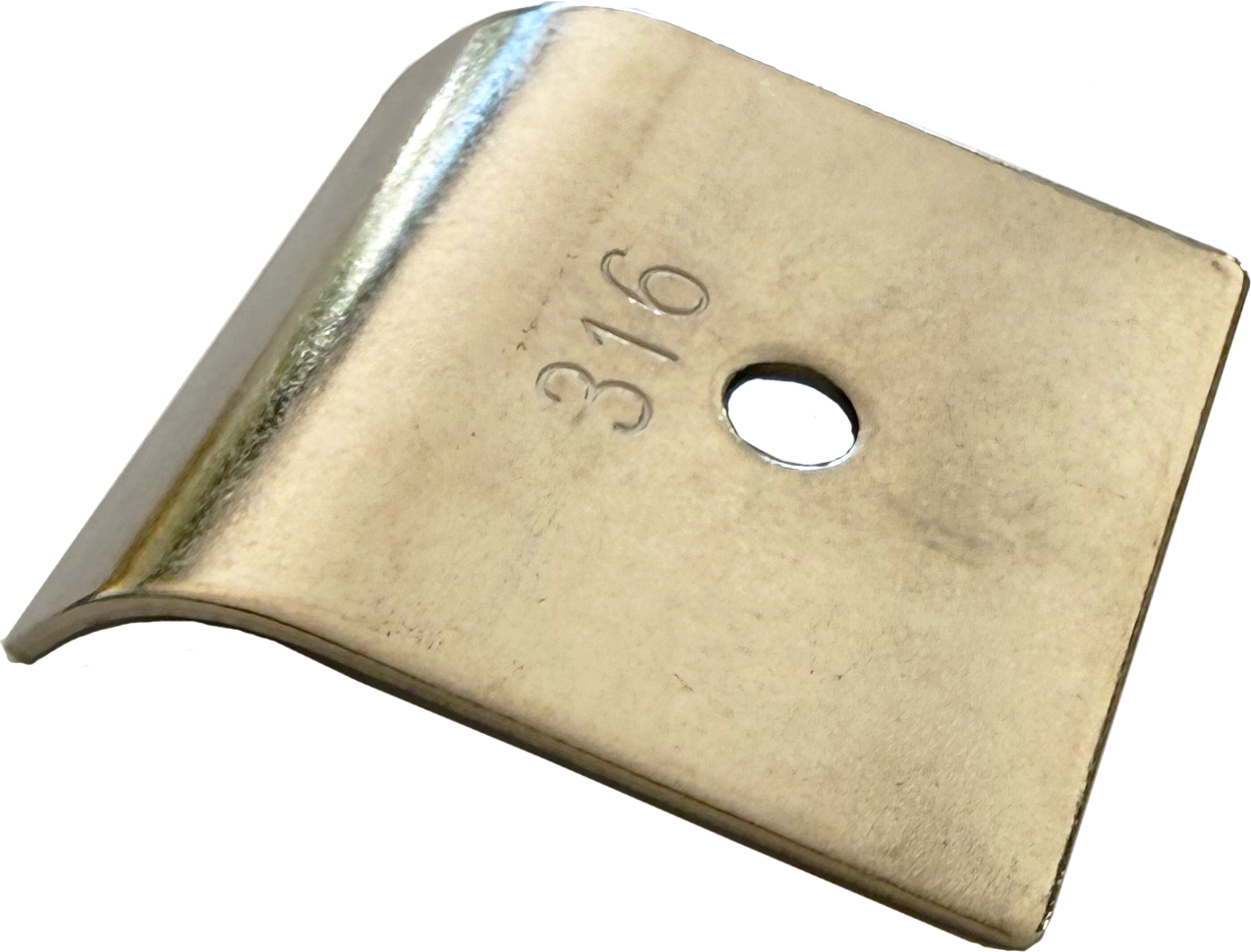

50×50 Square Cleat
For the 150mm FlexiBaffle we use a 316 stainless square cleat, this pins the baffle edge flush against the culvert wall. Fixed with the screw or anchor that matches the host structure’s material
MUSSEL ROPE

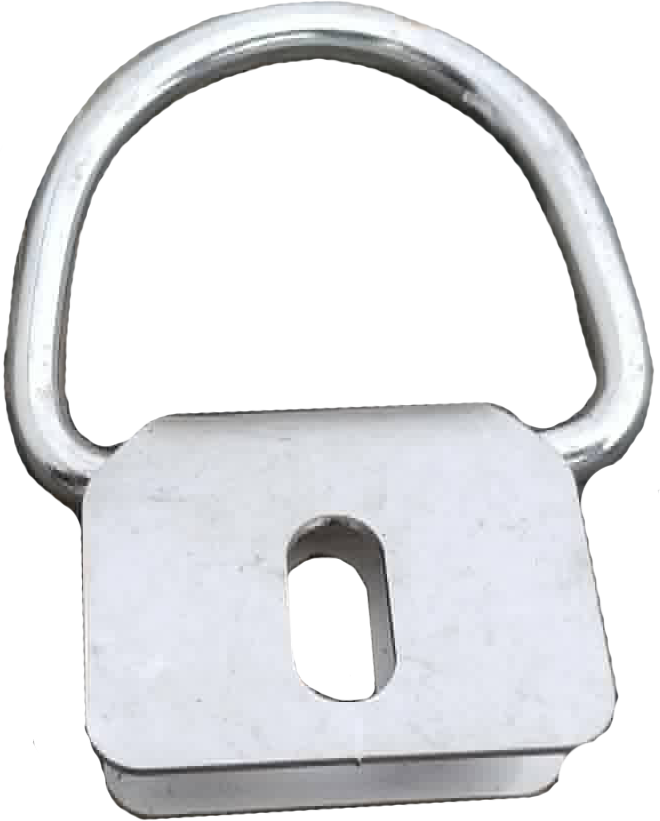

D-Ring & Clasp
Mussel Rope is anchored to the structure with a 316 stainless D-ring and clasp set (no penny washer), fixed using the anchor or screw that matches your structure material.
EVERYTHING ELSE (NOT INCLUDING TIDE GATES)

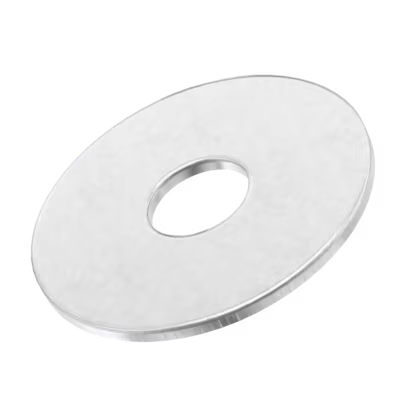

Penny Washer
Every other product in the range (including the 100mm FlexiBaffle) is fixed with the same 316 stainless penny washer, spreading clamping load so it doesn’t tear or pull through the product material.
Product Reference Table
A quick guide to most products
FLEXIBAFFLE - 150MM PROFILE
Dedicated Hardware: 50×50mm stainless square cleat
Fastener (by structure material): Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
FLEXIBAFFLE - 100MM PROFILE
Dedicated Hardware: Penny washer
Fastener (by structure material):Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
MUSSEL ROPE
Dedicated Hardware: 316 D-ring + clasp set (no washer)
Fastener (by structure material):Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
TUNNEL HOUSE
Dedicated Hardware: M6x32 Penny washer. 316 Stainless Steel
Fastener (by structure material):Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
PLANTER POD
Dedicated Hardware: M6x32 Penny washer. 316 Stainless Steel
Fastener (by structure material):Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
FLOATING RAMP
Dedicated Hardware: M6x32 Penny washer. 316 Stainless Steel
Fastener (by structure material): Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
RUBBER RAMP
Dedicated Hardware: M6x32 Penny washer. 316 Stainless Steel
Fastener (by structure material): Tek screw – opposite grade to culvert (steel) · Woodtek screw (plastic) · Wedge anchor (concrete/masonry)
